2-4 BRAKE BAND ASSEMBLY


BUE051719500A15

1. Apply ATF to a new D-ring and install it onto the band servo piston.

D-ring inner diameter
Small D-ring: 29.4 mm {1.16 in}
Large D-ring: 65.9 mm {2.59 in}

2. Assemble the servo piston and servo retainer.

3. Apply ATF to new O-rings and install them onto the servo retainer.

O-ring inner diameter
72.9 mm {2.87 in}

4. Install the servo return spring and servo retainer component into the transaxle case.

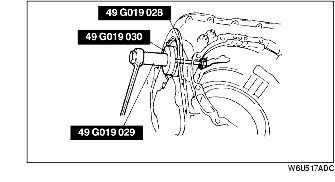

5. Press the servo retainer component using the SSTs.

6. Install the snap ring.

7. Install the piston stem, washer, and nut to the band servo piston.
