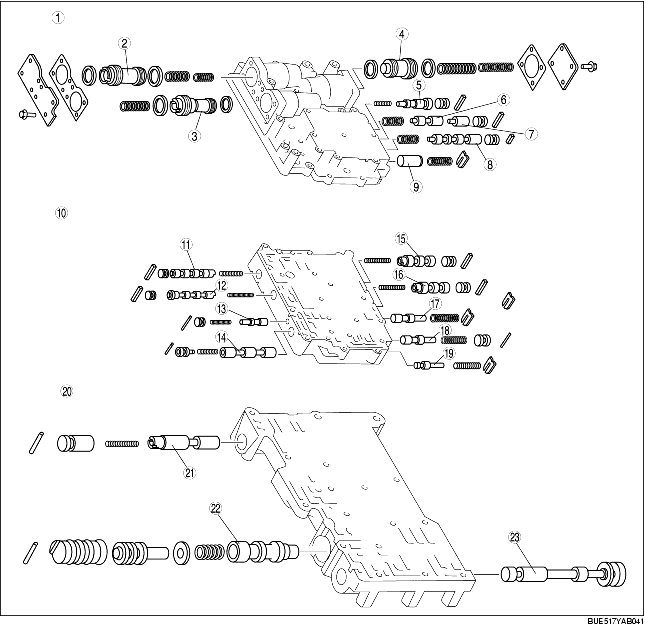

Component
|
Function
|
|
N-R accumulator
|
Reduces shift shock generated when R position is selected from N position, by moderating rapid hydraulic pressure increase when the reverse clutch and low and reverse brake are applied.
|
|
N-D accumulator
|
Reduces shift shock generated when D range is selected from N position, by moderating rapid hydraulic pressure increase when the forward clutch is applied.
|
|
1-2 accumulator
|
Reduces shift shock generated during 1GR→2GR shifting and 3GR→4GR shifting, by moderating rapid hydraulic pressure increase when the 2-4 brake band is applied.
|
|
Bypass valve
|
Controls 3-4 clutch application timing and shift shock during 2GR→3GR shifting.
|
|
Cutback valve
|
Controls modifier pressure applied to the pressure regulator valve.
|
|
3-2 timing valve
|
Controls 2-4 brake band apply side pressure during 1GR→2GR shifting in all conditions, and 2GR→3GR shifting at low ATF temperature.
|
|
Pressure modifier accumulator
|
Stabilizes modifier pressure adjusted by the pressure modifier valve, and prevents its pulsation.
|
|
3-4 shift valve
|
Automatically shifts between 3GR and 4GR based on solenoid valve ON-OFF signals controlled by the PCM.
|
|
TCC shift valve
|
Controls TCC operation based on solenoid valve ON-OFF signals controlled by the PCM.
|
|
Coast timing valve
|
Controls coasting clutch application timing.
|
|
Pressure modifier valve
|
Converts solenoid reducing pressure to modifier pressure that matches accelerator pedal depression degrees (engine output).
|
|
2-3 shift valve
|
Automatically shifts between 2GR and 3GR based on solenoid valve ON-OFF signals controlled by the PCM.
|
|
1-2 shift valve
|
Automatically shifts between 1GR and 2GR based on solenoid valve ON-OFF signals controlled by the PCM.
|
|
Low reducing valve
|
While in 1 range 1GR, reduces shift shock during 2GR→1GR shifting by reducing low and reverse brake application pressure and capacity.
|
|
Solenoid reducing valve
|
Converts line pressure into solenoid reducing pressure which acts on the pressure control solenoid.
|
|
Converter relief valve
|
Prevents torque converter pressure from exceeding a specified level.
|
|
2-3 timing valve
|
Controls 2-4 brake release pressure and 3-4 clutch pressure during 2GR→3GR shifting.
|
|
Pressure regulator valve
|
Adjusts line pressure generated by the oil pump to pressure that matches each driving condition.
|
|
Manual valve
|
Switches line pressure paths when the selector lever is shifted.
|
|
2-3 accumulator*
|
Reduces shift shock generated during 2GR→3GR shifting, by moderating rapid hydraulic pressure increase when the 3-4 clutch is applied.
|
