PREMAIN CONTROL VALVE BODY ASSEMBLY

Assembly Procedure

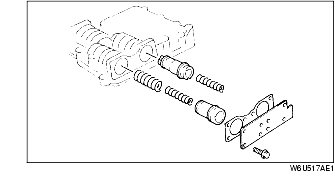

1. Apply ATF to the seal rings.

2. Install the piston and N-D accumulator spring.

3. Apply ATF to the seal rings.

4. Install the N-R accumulator springs and piston.

5. Install the N-R accumulator gasket and plate.

6. Tighten the plate bolt.

Tightening torque

6.5-7.8 N·m {66-80 kgf·cm, 58-69 in·lbf}

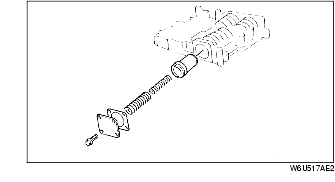

7. Apply ATF to the seal rings.

8. Install the piston and 1-2 accumulator springs.

9. Install the 1-2 accumulator gasket and plate.

10. Tighten the plate bolt.

Tightening torque

6.5-7.8 N·m {66-80 kgf·cm, 58-69 in·lbf}

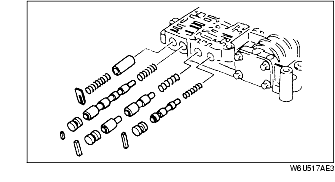

11. Install the bypass valve spring, bypass valve, stop plug, and stop pin.

12. Install the cut back spring, cut back valve B, cut back valve A, stop plug, and stop pin.

13. Install the 3-2 timing spring, 3-2 timing valve, stop plug, and stop pin.

14. Install the pressure modifier accumulator valve, pressure modifier accumulator spring, and spring retainer.
