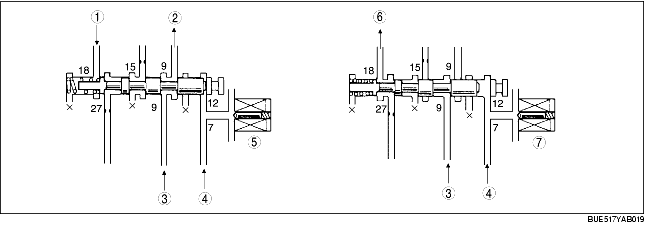

• Normally, line pressure (12) is retained because the 3-2 timing solenoid valve is turned OFF.
• The line pressure overcomes spring force to push the valve to the left side.
• When shifting from 1GR to 2GR, 2-4 brake application pressure (9) passes through the 3-2 timing valve to engage the 2-4 brake band with the solenoid valve ON. Brake band application pressure (9) from the other circuit also engages the 2-4 brake band.
• When shifting from 3GR to 2GR, the 3-2 timing valve drains 2-4 brake release pressure (15) to achieve shifting timing. When 2-4 brake band application side pressure reaches the specified pressure, the 3-2 timing solenoid valve goes OFF, and the 3-2 timing valve moves to the left to close outlet port (9).
• As a result, the 2-4 brake application side pressure increases gradually, improving 1GR to 2GR upshift response and reducing shift shock.
.
|
1
|
From 2-4 brake band
|
|
2
|
To 2-4 brake band
|
|
3
|
From 1-2 shift valve
|
|
4
|
From pressure regulator valve
|
|
5
|
3-2 timing solenoid valve: ON
|
|
6
|
To 3-4 clutch
|
|
7
|
3-2 timing solenoid valve: OFF
|
