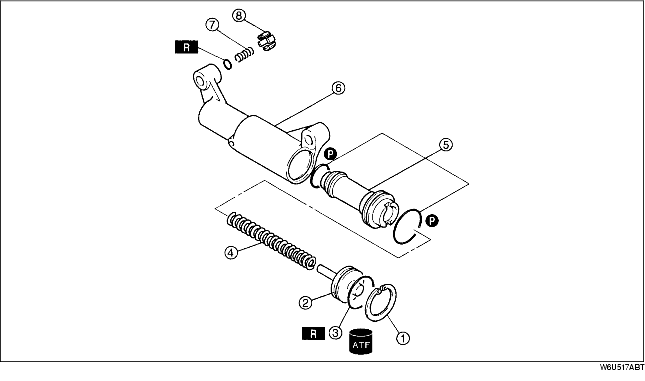

2-3 ACCUMULATOR DISASSEMBLY


BUE051721272A01

1. Disassemble in the order indicated in the table.

.

1
Snap ring
2
Stopper plug
3
O-ring
4
2-3 accumulator spring
5
2-3 accumulator piston
6
2-3 accumulator body
7
Orifice check valve spring
8
Orifice check valve
