PARKING MECHANISM DISASSEMBLY


BUE051721400A01

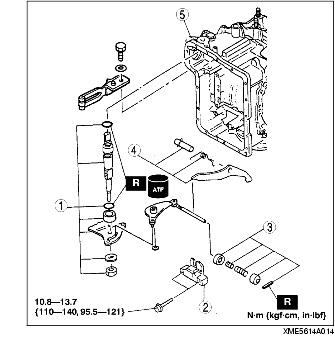

1. Disassemble in the order indicated in the table.

1
Manual shaft and manual plate
2
Actuator support
3
Parking assist lever
4
Parking pawl
5
Transaxle case

Disassembly Procedure

1. Remove the actuator support.

2. Remove the snap ring and remove the parking assist lever.

3. Remove the parking pawl.

• Pull out the parking shaft, and remove the spring and parking pawl.
