ON-BOARD DIAGNOSTIC OUTLINE[L3]

id0102a2100100

Features

To meet the EOBD regulations

•  Diagnostic test modes adopted

Improved serviceability

•  DTCs adopted

•  KOEO/KOER self-test function adopted

•  PID/DATA monitor function adopted

•  Simulation test function adopted

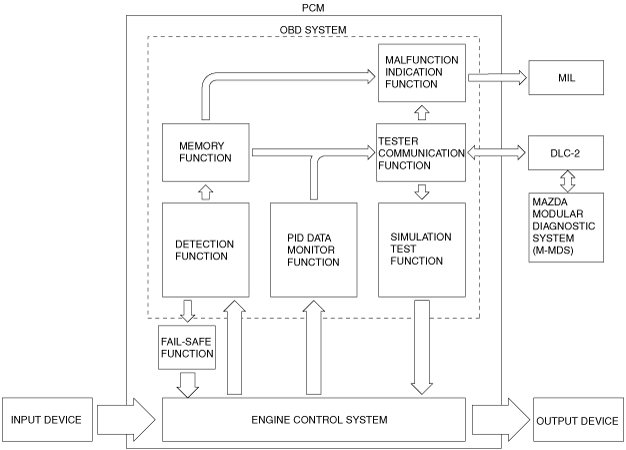

Block Diagram

atraan00000417

To meet the EOBD regulations	• Diagnostic test modes adopted
Improved serviceability	• DTCs adopted • KOEO/KOER self-test function adopted • PID/DATA monitor function adopted • Simulation test function adopted
