DTC P2128[L3]

id0102a2812000

DTC P2128

APP sensor No.2 circuit high input
DETECTION CONDITION
•  The PCM monitors the input voltage from APP sensor No.2 when the engine is running. If the input voltage is more than4.5 V, the PCM determines that the APP sensor No.2 circuit has a malfunction.
Diagnostic support note
•  This is a continuous monitor (CCM).
•  The MIL illuminates if the PCM detects the above malfunction condition in the first drive cycle.
•  PENDING CODE is available if the PCM detects the above malfunction condition.
•  FREEZE FRAME DATA is available.
•  Are any DTCs is stored in the PCM memory.
POSSIBLE CAUSE
•  APP sensor No.2 malfunction
•  Connector or terminal malfunction

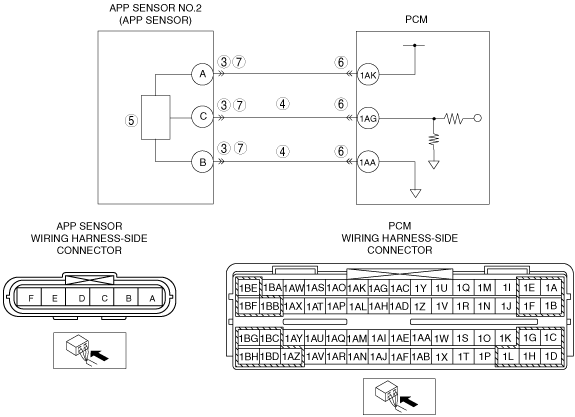

•  Open circuit in wiring harness between APP sensor terminal B and PCM terminal 1AA
•  Open circuit in wiring harness between APP sensor terminal C and PCM terminal 1AG
•  Short to power supply in wiring harness between APP sensor terminal B and PCM 1AA
•  Short to power supply in wiring harness between APP sensor terminal C and PCM 1AG
•  PCM malfunction

Diagnostic procedure

STEP

INSPECTION

ACTION
1
VERIFY FREEZE FRAME DATA AND DIAGNOSTIC MONITORING TEST RESULTS HAS BEEN RECORDED
•  Has FREEZE FRAME DATA been recorded?
Yes
Go to the next step.
No
Record the FREEZE FRAME on the repair order, then go to the next step.
2
VERIFY RELATED SERVICE INFORMATION AVAILABILITY
•  Verify related Service Information availability.
•  Is any related Service Information available?
Yes
Perform repair or diagnosis according to the available Service Information.
If the vehicle is not repaired, go to the next step.
No
Go to the next step.
3
INSPECT APP SENSOR CONNECTOR FOR POOR CONNECTION
•  Turn the ignition switch off.
•  Disconnect the APP sensor connector.
•  Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
•  Is there any malfunction?
Yes
Repair or replace the terminal, then go to Step 8.
No
Go to the next step.
4
INSPECT APP SENSOR NO.2 SIGNAL CIRCUIT FOR SHORT TO POWER SUPPLY
•  Turn the ignition switch to the ON position (Engine off).
•  Measure the voltage between the following terminals (wiring harness-side) and body ground.
―  APP sensor terminal B
―  APP sensor terminal C
•  Is the voltage B+?
Yes
Repair or replace the wiring harness for a possible short to power supply, then go to Step 8.
No
Go to the next step.
5
INSPECT APP SENSOR NO.2
•  Inspect APP sensor No.2.
•  Is there any malfunction?
Yes
Replace the APP sensor, then go to Step 8.
(See ACCELERATOR PEDAL REMOVAL/INSTALLATION[L3].)
No
Go to the next step.
6
INSPECT PCM CONNECTOR FOR POOR CONNECTION
•  Turn the ignition switch off.
•  Disconnect the PCM connector.
•  Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
•  Is there any malfunction?
Yes
Repair or replace the terminal, then go to Step 8.
No
Go to the next step.
7
INSPECT APP SENSOR NO.2 GROUND CIRCUIT FOR OPEN CIRCUIT
•  Turn the ignition switch off.
•  Inspect for continuity between the following circuits:
―  APP sensor terminal B (wiring harness-side) and PCM terminal 1AA (wiring harness-side)
―  APP sensor terminal C (wiring harness-side) and PCM terminal 1AG (wiring harness-side)
―  APP sensor terminal A (wiring harness-side) and PCM terminal 1AK (wiring harness-side)
•  Is there continuity?
Yes
Go to the next step.
No
Repair or replace the wiring harness for a possible an open circuit, then go to the next step.
8
VERIFY TROUBLESHOOTING OF DTC P2128 COMPLETED
•  Make sure to reconnect all disconnected connectors.
•  Clear the DTC from the PCM memory using the M-MDS.
•  Start the engine.
•  Is the same DTC present?
Yes
Replace the PCM, then go to the next step.
(See PCM REMOVAL/INSTALLATION[L3].)
No
Go to the next step.
9
VERIFY AFTER REPAIR PROCEDURE
•  Perform the “AFTER REPAIR PROCEDURE”.
•  Is any DTC present?
Yes
Go to the applicable DTC inspection.
(See DTC TABLE[L3].)
No
DTC troubleshooting completed.
