DTC P0113[AJ (3.0L Duratec)]
id0102a4803800
|
DTC P0113 |
IAT circuit high input |
|---|---|
|
DETECTION CONDITION
|
• PCM monitors input voltage from IAT sensor when engine is running. If input voltage at PCM terminal 39 is above 4.6 V, PCM determines that IAT circuit has a malfunction.
|
|
POSSIBLE CAUSE
|
• IAT sensor malfunction
• Connector or terminal malfunction

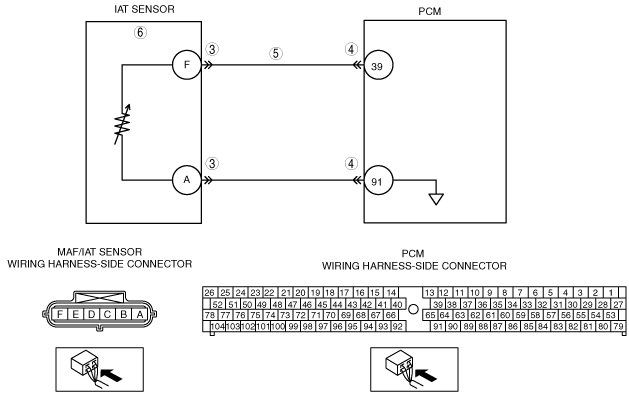

• Short to power supply in wiring between, MAF/IAT sensor terminal F and PCM terminal 39
• PCM malfunction
|
 |
|
Diagnostic procedure
|
STEP |
INSPECTION |
ACTION |
|
|---|---|---|---|
|
1
|
VERIFY FREEZE FRAME DATA HAS BEEN RECORDED
• Has FREEZE FRAME DATA been recorded?
|
Yes
|
Go to next step.
|
|
No
|
Record FREEZE FRAME DATA on repair order, then go to next step.
|
||
|
2
|
VERIFY RELATED SERVICE INFORMATION AVAILABILITY
• Check for related Service Information availability.
• Is any related Service Information available?
|
Yes
|
Perform repair or diagnosis according to available Service Information.
• If vehicle is not repaired, go to next step.
|
|
No
|
Go to next step.
|
||
|
3
|
INSPECT MAF/IAT SENSOR CONNECTOR FOR POOR CONNECTION
• Turn the ignition switch off.
• Disconnect the MAF/IAT sensor connector.
• Check for poor connection (damaged, pulled-out terminals, corrosion, etc.).
• Is there any malfunction?
|
Yes
|
Repair or replace terminals, then go to Step 7.
|
|
No
|
Go to next step.
|
||
|
4
|
INSPECT PCM CONNECTOR FOR POOR CONNECTION
• Turn the ignition switch off.
• Disconnect PCM connector.
• Check for poor connection (damaged, pulled-out terminals, corrosion, etc.).
• Is there any malfunction?
|
Yes
|
Repair terminal, then go to Step 7.
|
|
No
|
Go to next step.
|
||
|
5
|
INSPECT IAT SIGNAL CIRCUIT FOR SHORT TO POWER CIRCUIT
• Turn the ignition switch to the ON position (Engine OFF).
• Measure voltage between MAF/IAT sensor terminal F (harness-side) and body ground.
• Is there voltage 0 V?
|
Yes
|
Go to next step.
|
|
No
|
Repair or replace suspected harness, then go to Step 7.
|
||
|
6
|
INSPECT IAT SENSOR
• Inspect the IAT sensor.
• Is there any malfunction?
|
Yes
|
Replace MAF/IAT sensor, then go to next step.
|
|
No
|
Go to next step.
|
||
|
7
|
VERIFY TROUBLESHOOTING OF DTC P0113 COMPLETED
• Make sure to reconnect all disconnected connectors.
• Clear DTC from memory using M-MDS.
• Start engine.
• Perform “KOEO/KOER self-test”
• Is same DTC present?
|
Yes
|
Replace PCM, then go to next step.
|
|
No
|
Go to next step.
|
||
|
8
|
VERIFY AFTER REPAIR PROCEDURE
• Perform "AFTER REPAIR PROCEDURE".
• Is there any DTC present?
|
Yes
|
Go to applicable DTC inspection.
(See DTC TABLE[AJ (3.0L Duratec)].)
|
|
No
|
Troubleshooting completed.
|
||
