DTC P0118[AJ (3.0L Duratec)]
id0102a4804100
|
DTC P0118 |
ECT circuit high input |
|---|---|
|

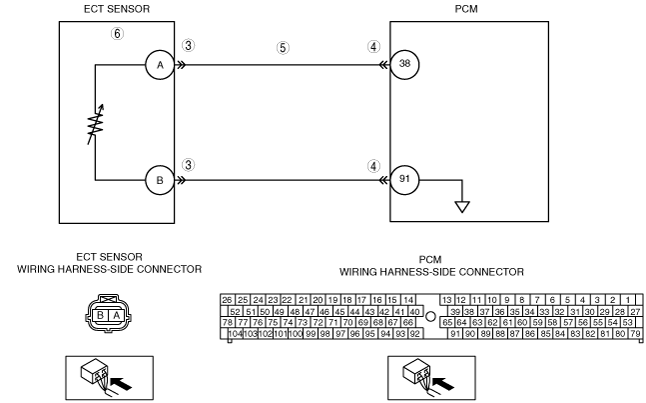

DETECTION CONDITION
|
• PCM monitors input voltage from ECT sensor when engine is running. If input voltage at PCM terminal 38 is above 4.6 V, PCM determines that ECT circuit has a malfunction.
|
|
POSSIBLE CAUSE
|
• ECT sensor malfunction
• Connector or terminal malfunction
• Short to power supply in wiring between ECT sensor terminal A and PCM terminal 38
• PCM malfunction
|
 |
|
Diagnostic procedure
|
STEP |
INSPECTION |
ACTION |
|
|---|---|---|---|
|
1
|
VERIFY FREEZE FRAME DATA HAS BEEN RECORDED
• Has FREEZE FRAME DATA been recorded?
|
Yes
|
Go to next step.
|
|
No
|
Record FREEZE FRAME DATA on repair order, then go to next step.
|
||
|
2
|
VERIFY RELATED SERVICE INFORMATION AVAILABILITY
• Check for related Service Information availability.
• Is any related Service Information available?
|
Yes
|
Perform repair or diagnosis according to available Service Information.
• If vehicle is not repaired, go to next step.
|
|
No
|
Go to next step.
|
||
|
3
|
INSPECT ECT SENSOR CONNECTOR FOR POOR CONNECTION
• Turn the ignition switch off.
• Disconnect the ECT sensor connector.
• Check for poor connection (damaged, pulled-out terminals, corrosion, etc.).
• Is there any malfunction?
|
Yes
|
Repair or replace terminals, then go to Step 7.
|
|
No
|
Go to next step.
|
||
|
4
|
INSPECT PCM CONNECTOR FOR POOR CONNECTION
• Turn the ignition switch off.
• Disconnect PCM connector.
• Check for poor connection (damaged, pulled-out terminals, corrosion, etc.).
• Is there any malfunction?
|
Yes
|
Repair terminal, then go to Step 7.
|
|
No
|
Go to next step.
|
||
|
5
|
INSPECT ECT SIGNAL CIRCUIT FOR SHORT TO POWER CIRCUIT
• Turn the ignition switch to the ON position (Engine OFF).
• Measure voltage between ECT sensor terminal A (harness-side) and body ground.
• Is there voltage 0 V?
|
Yes
|
Go to next step.
|
|
No
|
Repair or replace suspected harness, then go to Step 7.
|
||
|
6
|
INSPECT ECT SENSOR
• Inspect the ECT sensor.
• Is there any malfunction?
|
Yes
|
Replace ECT sensor, then go to next step.
|
|
No
|
Go to next step.
|
||
|
7
|
VERIFY TROUBLESHOOTING OF DTC P0118 COMPLETED
• Make sure to reconnect all disconnected connectors.
• Clear DTC from memory using M-MDS.
• Start engine.
• Perform “KOEO/KOER self-test”
• Is same DTC present?
|
Yes
|
Replace PCM, then go to next step.
|
|
No
|
Go to next step.
|
||
|
8
|
VERIFY AFTER REPAIR PROCEDURE
• Perform "AFTER REPAIR PROCEDURE".
• Is there any DTC present?
|
Yes
|
Go to applicable DTC inspection.
(See DTC TABLE[AJ (3.0L Duratec)].)
|
|
No
|
Troubleshooting completed.
|
||
