FOREWORD[L3]


id0103a4800300

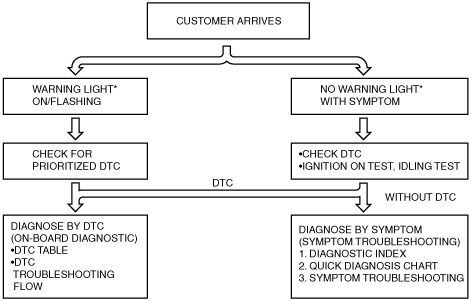

•  When the customer reports a vehicle malfunction, check the malfunction indicator lamp (MIL) indication and diagnostic trouble code (DTC), then diagnose the malfunction according to the following flowchart:
―  If a DTC exists, diagnose the applicable DTC inspection. (See DTC TABLE[L3].)
―  If no DTC exists and the MIL does not illuminate or flash, diagnose the applicable symptom troubleshooting. (See QUICK DIAGNOSTIC CHART[L3].)
atraaw00003114
*: Malfunction Indicator Lamp (MIL), Generator Warning Light, Security Light
