CRANKSHAFT, MAIN BEARING CONSTRUCTION[AJ (3.0L Duratec)]


id0110a3100800

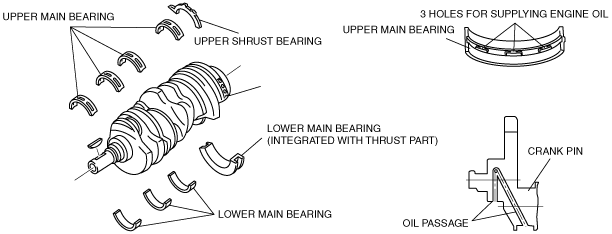

•  Cast iron has been adopted on the crankshaft.
•  The crankshaft has internal oil passages for supplying oil to each journal.
•  The internal surface of the upper main bearing has oil grooves and holes for oil lubrication.
•  An integrated thrust bearing has been adopted on the lower main bearing.
atraan00000061
