DRIVE BELT CONSTRUCTION[AJ (3.0L Duratec)]
id0110a3102500

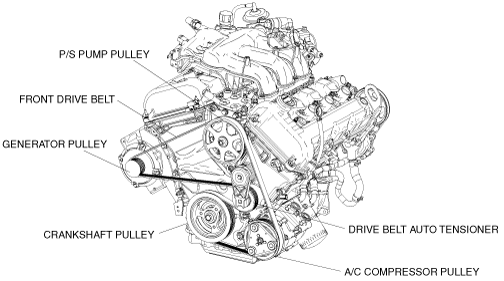

Front Drive Belt
• A single V-ribbed belt (serpentine type) has been adopted on the front drive belt which drives the generator, P/S oil pump and the A/C compressor. A drive belt auto tensioner inside the coil spring has been adopted which is automatically adjusted so that the appropriate tension from the tensioner pulley is maintained.
• The front drive belt tension is automatically adjusted so that appropriate tension from the auto tensioner for the front drive belt is maintained.
