VALVE, VALVE SPRING, VALVE SEAL GUIDE CONSTRUCTION[AJ (3.0L Duratec)]


id0110a3120200

•  Heat-resistant steel rods have been adopted on the four valves, with two intake valves and two exhaust valves per cylinder.
•  A valve seal integrated into the lower valve spring seat has been adopted for simplification and improved serviceability.

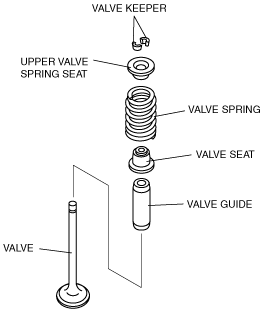

atraan00000079
