REAR OIL SEAL REMOVAL/INSTALLATION[AJ (3.0L Duratec)]

id0110a3803100

Removal

1.  Remove the drive plate. (See DRIVE PLATE REMOVAL[LA4AX-EL (CD4E)].)

2.  Using a flathead screwdriver, remove the rear oil seal.

atraaw00003304

Installation

Note

•  Lubricate the crankshaft rear oil lip with engine oil.

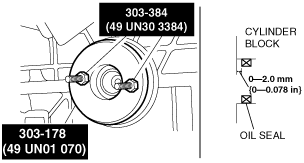

1.  Using the SST, install the rear oil seal.

atraaw00000860

2.  Install the drive plate. (See DRIVE PLATE INSTALLATION[LA4AX-EL (CD4E)].)
