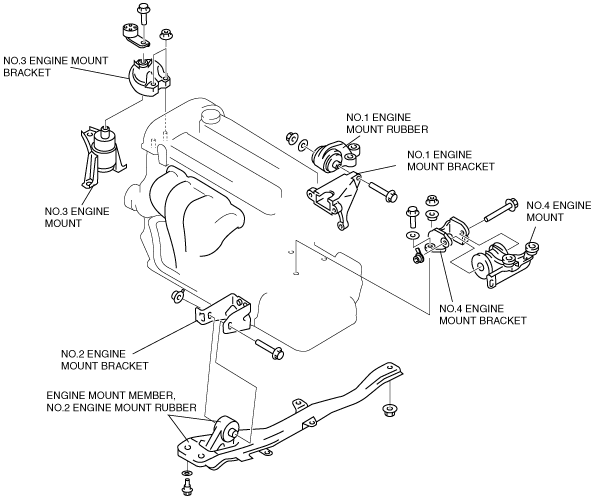

ENGINE MOUNT OUTLINE[L3]
id0110a4101400
• The engine is supported at four points and simplification of engine mount composition has been attained.
• An oil-filled No.3 engine mount rubber has been adopted to reduce noise and vibration in the cabin.
atraan00000455
