DRIVE BELT CONSTRUCTION[L3]


id0110a4102500

•  A serpentine type drive belt with a V-ribbed belt to drive the supplemental units has been adopted. This shortens the engine length and improves serviceability.
•  A front drive belt auto tensioner with an embedded coil spring has been adopted to automatically maintain the optimal drive belt tension.

Drive Belt Specification.

ITEM



Belt length size
mm {in}
About 2,310 {90.94}
Belt width size
mm {in}
About 20.5 {0.81}

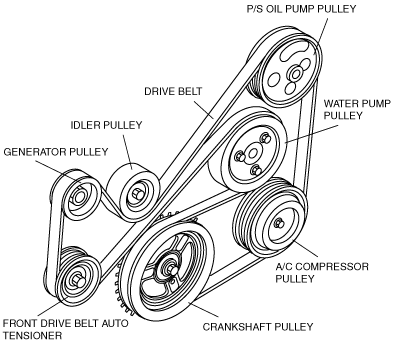

atraan00000246
