OIL PUMP CONSTRUCTION[L3]
id0111a1100600

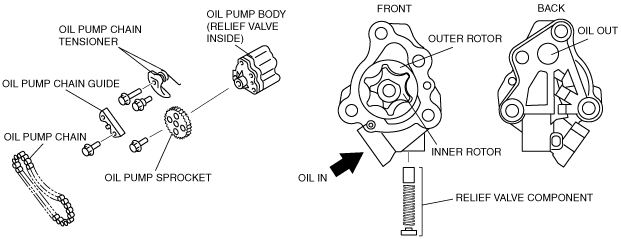

• The oil pump is installed inside the engine front cover. The crankshaft drives the inner rotor through the oil pump chain and oil pump sprocket.
• The oil pump component consists of the oil pump body, oil pump sprocket, oil pump chain, oil pump chain guide, and oil pump chain tensioner.
• A trochoid gear has been adopted on the oil pump.
• The oil pump consists of the inner and outer rotors, relief valve, and oil pump body.
• The oil pump cannot be disassembled. If there is an oil pump malfunction, replace it as a single unit.
Oil pump specification
|
Item
|
Engine speed [rpm]
|
Specification (kPa {kgf/cm2, psi})
|
|
Oil discharge pressure (reference value)
[Oil temperature: 100 °C {212 °F}]
|
1,500
|
180— 387 {1.84—3.95, 26.2—56.1}
|
|
3,000
|
337—591 {3.44—6.03, 49.0—85.8}
|
|
Relief valve opening pressure (reference value)
|
420—520 {4.28—5.30, 60.9—75.4}
|

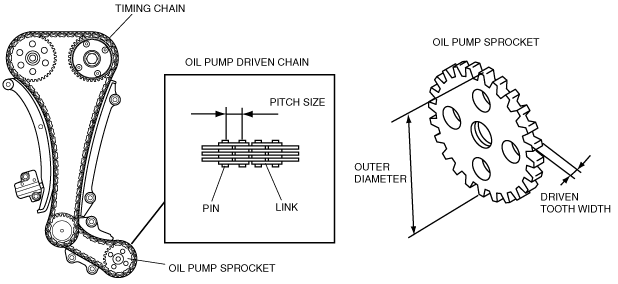

• A silent chain (link connecting type) has been adopted to the oil pump chain to reduce chain operation noise when the chain and the sprocket engage.
• The engine oil in the engine front cover lubricates the oil pump chain. Wear resistance has been improved using nitriding processing of the pins constructing the oil pump chain.
• The sintered material in the oil pump sprocket has been furnace hardened to improve durability.
Oil pump driven chain, oil pump sprocket specification
|
Item
|
Specification (mm {in})
|
|
Oil pump driven chain
|
Pitch size
|
|
6.35 {0.25}
|
|
Oil pump sprocket
|
Outer diameter
|
|
46.46 {1.829}
|
|
Driven tooth width
|
|
5.7 {0.23}
|
