COOLING FAN COMPONENT CONSTRUCTION/OPERATION[AJ (3.0L Duratec)]
id0112a2141900

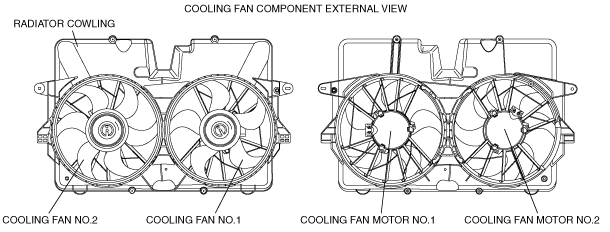

Construction
• The cooling fan component consists of the radiator cowling, cooling fans, and cooling fan motors.
• Electric cooling fans No.1 and No.2, which operate according to the fan control signal from the PCM, have been adopted. Due to this, engine noise has been reduced and rapid engine warming-up is possible.
• The radiator cowling and cooling fans are made of plastic for weight reduction.
• The cooling fan component cannot be disassembled.
Cooling fan, cooling fan motor specification
|
Item
|
Specification
|
|
No.1
|
No.2
|
|
Cooling fan
|
Number of blades
|
|
5
|
6
|
|
Outer diameter
|
(mm {in})
|
320
|
|
Cooling fan motor output
|
(W)
|
220
|
Operation
• Cooling fans No.1 and No.2 operate according to the engine coolant temperature and whether the A/C is on or off.
