CHARCOAL CANISTER CONSTRUCTION/OPERATION[AJ (3.0L Duratec)]


id0116a1102000

•  Installed on the front of the fuel tank.

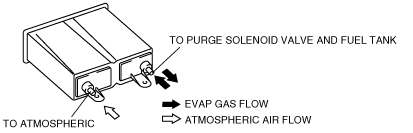

•  During purge solenoid valve operation, atmospheric air enters the charcoal canister from the atmospheric orifice to entirely flood the activated charcoal and release the evaporative gas.
atraan00000014
