EVAPORATIVE EMISSION CONTROL SYSTEM CONSTRUCTION[AJ (3.0L Duratec)]

id0116a1149400

• Consists of a purge solenoid valve, charcoal canister, rollover valve, and fuel-filler cap.

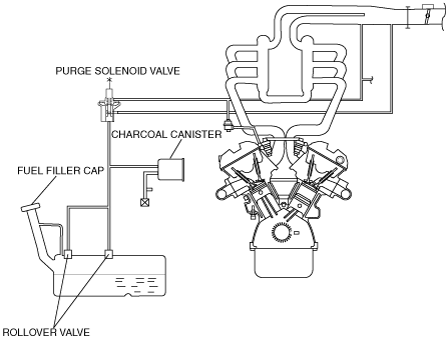

System Diagram

atraan00000473
