QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION[AJ (3.0L Duratec)]

id0116a1805500

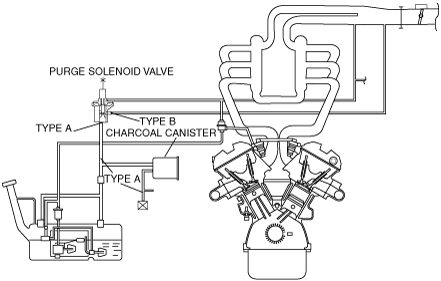

Quick Release Connector Type

Caution

•  There are two types of quick release connector. Verify the type and location, and then remove/install correctly.

atraaw00003372

Type A

Removal

1.  Disconnect the negative battery cable.

2.  Depress the quick release connector release tabs.

atraaw00000944

3.  Remove the quick release connector.

Installation

1.  Clean and inspect the quick release connector and the fuel pipe for damage.

2.  Align the fuel pipe to the quick release connector and push until you hear a click.

atraaw00000945

Note

•  If the quick release connector retainer of the fuel line is removed, replace it with a new one.

3.  Pull on the quick release connector to make sure it is fully engaged.

atraaw00000946

4.  Connect the negative battery cable.

Type B

Removal

1.  Remove the battery cover.

2.  Disconnect the negative battery cable.

3.  Depress the quick release connector release tabs.

atraaw00001006

4.  Remove the quick release connector.

Installation

1.  Clean and inspect the quick release connector and the fuel pipe for damage.

2.  Align the fuel pipe to the quick release connector and push until you hear a click.

atraaw00001007

Note

•  If the quick release connector retainer of the fuel line is removed, replace it with a new one.

3.  Pull on the quick release connector to make sure it is fully engaged.

atraaw00001008

4.  Connect the negative battery cable.
