PURGE SOLENOID VALVE INSPECTION[L3]

id0116a2800900

Airflow inspection

1.  Disconnect the negative battery cable.

2.  Remove the purge solenoid valve. (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION[L3].)

3.  Inspect airflow between the ports under the following conditions.

•  If not as specified, replace the purge solenoid valve.

•  If as specified, carry out the "Circuit Open/Short Inspection".

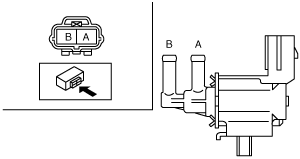

atraaw00000600

atraaw00000601

Circuit Open/Short Inspection

1.  Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION[L3].)

2.  Inspect the following wiring harness for an open or short circuit (Continuity check).

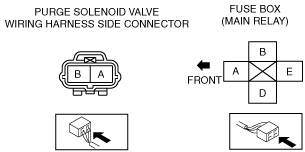

atraaw00000602

atraaw00000603

Open circuit

•  If there is no continuity, there is an open circuit. Repair or replace the wiring harness.

―  Purge solenoid valve terminal A and PCM terminal 2AN

―  Purge solenoid valve terminal B and main relay terminal A

Short circuit

•  If there is continuity, there is a short circuit. Repair or replace the wiring harness.

―  Purge solenoid valve terminal A and power supply

―  Purge solenoid valve terminal A and body ground

―  Purge solenoid valve terminal B and body ground
