CHARCOAL CANISTER REMOVAL/INSTALLATION[L3]


id0116a2803900

1.  Remove in the order indicated in the table.

2.  Install in the reverse order of removal.

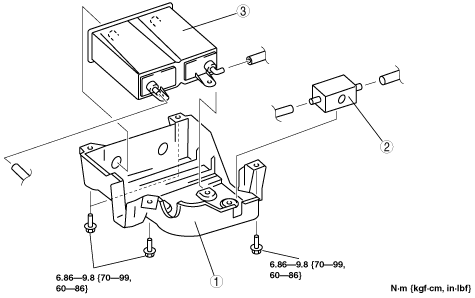

atraaw00000608

1
Charcoal canister protector
2
Air filter
3
Charcoal canister
