GENERATOR DISASSEMBLY/ASSEMBLY[L3]


id0117a3800400

Caution
•  Melt the solder quickly, otherwise the diodes (rectifier) and regulator will be damaged by excessive heat.

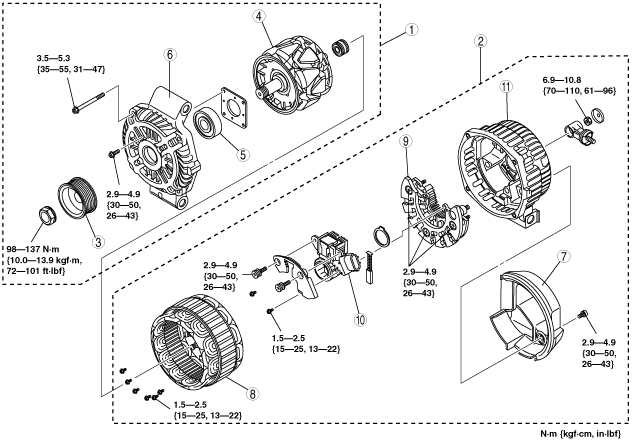

1.  Disassemble in the order indicated in the table.

2.  Assemble in the reverse order of disassembly.

acxuuw00002030

1
Rotor component
2
Stator coil component
3
Pulley
4
Rotor
5
Bearing
6
Front cover
7
Generator heat insulator
8
Stator coil
9
Rectifier
10
Brush holder
11
Rear bracket
