STARTER REMOVAL/INSTALLATION [L3]

id0119a2800200

Warning

•  Remove and install all parts when the engine is cold, otherwise they can cause severe burns or serious injury.

•  When the battery cables are connected, touching the vehicle body with starter terminal B will generate sparks. This can cause personal injury, fire, and damage to the electrical components. Always disconnect the negative battery cable before performing the following operation.

1.  Disconnect the negative battery cable.

2.  Position the both splash shields out of the way.

3.  Remove in the order indicated in the table.

4.  Install in the reverse order of removal.

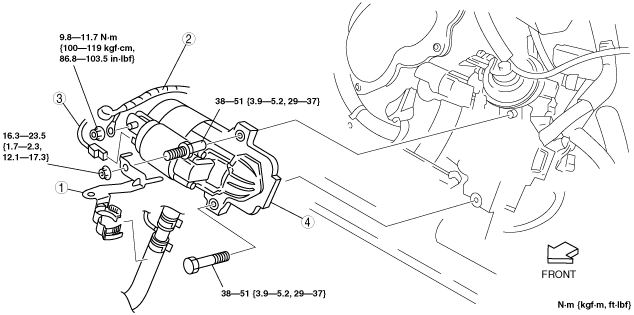

atraaw00000536

1	Water hose bracket
2	Terminal B cable
3	Terminal S connector
4	Starter (See Starter Installation Note.)

Starter Installation Note

Note

•  If there is peeling on or damage to the insulator, attach a new insulator using the following procedure:

acxaaw00000762

1.  Peel off the insulator from the starter completely using a scraper.

2.  Degrease the insulator attachment area.

acxaaw00000763

3.  Attach a new insulator to the starter.

acxaaw00000764
