DIFFERENTIAL PRESSURE FEEDBACK (D.P.F.) EGR SENSOR REMOVAL/INSTALLATION[AJ (3.0L Duratec)]

id0140a1804600

1.  Disconnect the negative battery cable.

2.  Disconnect the differential pressure feedback EGR sensor connector.

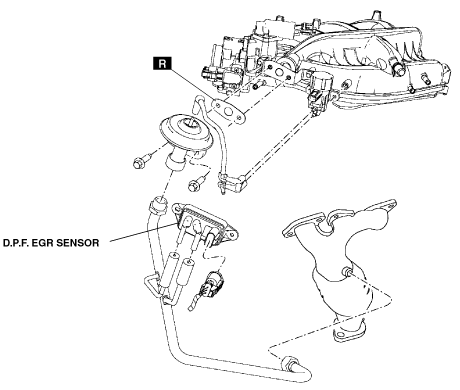

atraaw00000194

3.  Remove the differential pressure feedback EGR sensor from EGR tube by pulling it out.

4.  Install in the reverse order of removal.
