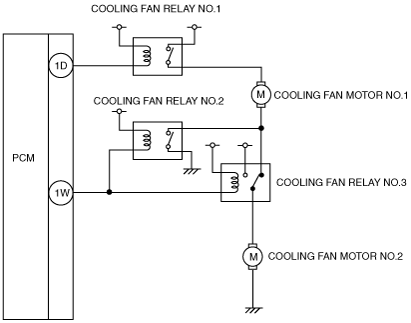

ELECTRICAL FAN CONTROL OPERATION[L3]
id0140a7104000
|
Condition |
PCM terminal 1D |
PCM terminal 1W |
Operation condition |
|
|---|---|---|---|---|
|
Cooling fan motor No. 1 |
Cooling fan motor No. 2 |
|||
|
Stopped
|
Stopped
|
OFF
|
OFF
|
A/C: OFF
ECT: below 100 °C {212 °F}
|
|
Low speed
|
Low speed
|
ON
|
OFF
|
A/C: OFF
ECT: 100—108 °C {212—226 °F}
|
|
High speed
|
High speed
|
ON
|
ON
|
A/C: OFF
ECT: above 108 °C {226 °F}
|
|
Low speed
|
Low speed
|
ON
|
OFF
|
A/C: ON (middle switch OFF)
ECT: below 108 °C {226 °F}
|
|
High speed
|
Middle speed/
High speed
|
ON
|
OFF
|
A/C: ON (middle switch ON)
ECT: below 108 °C {226 °F}
|
|
High speed
|
High speed
|
ON
|
ON
|
A/C: ON
ECT: above 108 °C {226 °F}
|
