•  Installed on the water bypass tube (directly below the ignition coil).

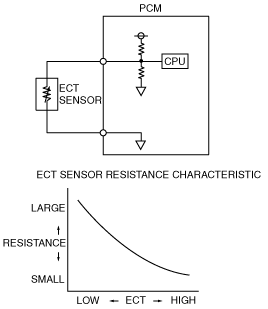

•  The ECT is a thermistor type, the resistance changes according to the engine coolant temperature.

atraan00000164

•  The resistance decreases if the engine coolant temperature increases, and increases if the engine coolant temperature decreases.
