KNOCK SENSOR (KS) REMOVAL/INSTALLATION[L3]

id0140a7802900

1.  Disconnect the negative battery cable.

2.  Remove the intake manifold. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION[L3].)

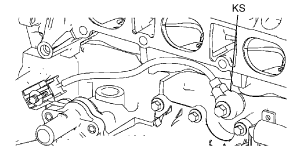

3.  Remove the KS attachment bolt to remove the KS.

atraaw00002227

4.  Install in the reverse order of removal.

Tightening torque
16.2—23.8 N·m
{1.7—2.4 kgf·m, 12.0—17.5 ft·lbf}
