POWER STEERING PRESSURE (PSP) SWITCH INSPECTION[L3]

id0140a7803100

Note

•  Perform the following inspection only when directed.

Continuity Inspection

1.  Inspect the following if the power steering is inoperative (See POWER STEERING FLUID INSPECTION.):

•  Power steering fluid level

•  Power steering fluid leakage

•  Power steering fluid pressure

2.  Disconnect the PSP switch connector.

3.  Start the engine.

4.  Inspect for continuity between the PSP switch terminal and GND using an ohmmeter.

•  If not as specified, replace the PSP switch.

•  If the PSP switch is okay, but PSP PID value is out of specification, perform the “Circuit Open Inspection”.

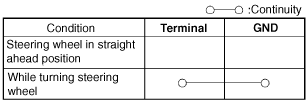

Specification

atraaw00001315

Circuit Open Inspection

atraaw00001316

atraaw00001317

1.  Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION[L3].)

2.  Inspect the following harness for open or short. (Continuity check)

Open circuit

•  If there is no continuity, the circuit is open. Repair or replace the harness.

―  PSP switch terminal and PCM terminal 2S

―  PSP switch terminal and body ground

Short circuit

•  If there is continuity, the circuit is shorted. Repair or replace the harness.

―  PSP switch terminal and body ground
