REAR COIL SPRING REMOVAL/ INSTALLATION

id021400801700

1.  Remove the wheel and tire assembly. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

2.  Remove the brake caliper component and brake hose bracket, then support the brake caliper to the vehicle.

3.  Remove the disc plate.

4.  Position the ABS wheel-speed sensor aside.

atraaw00002228

(1)  Remove the ABS wheel-speed sensor bolt and bracket bolts.

(2)  Position the ABS wheel-speed sensor aside.

5.  Support the rear wheel knuckle.

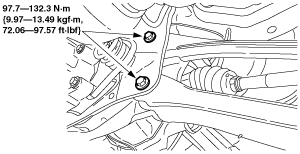

6.  Loosen both inside upper and lower arm bolts.

atraaw00002229

7.  Remove the lower shock nut and position aside.

atraaw00003110

8.  Remove the spring.

atraaw00002231

Note

•  Note the position of the upper spring seat rubber and spring for installation.

(1)  Remove the support to the wheel knuckle.

(2)  Remove the spring.

9.  Remove in the reverse order of removal.
