JOINT SHAFT DISASSEMBLY/ASSEMBLY[L3]

id0313008014a1

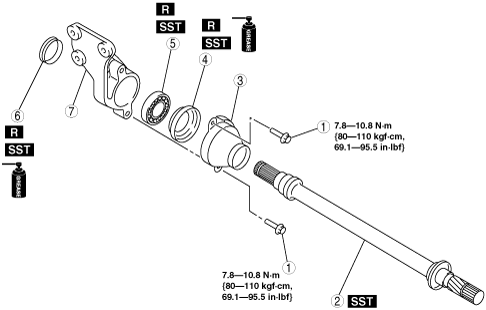

1. Remove in the order indicated in the table.

2. Install in the reverse order of removal.

atraaw00002617

Joint Shaft Disassembly Note

1. Loosen the dust cover installation bolt and remove the dust cover from the bracket.

2. Remove the joint shaft using a press.

atraaw00002618

Dust Seal (Differential Side), Bearing Disassembly Note

1. Remove the dust seal (differential side) and the bearing using the SSTs and a press.

atraaw00002619

Dust Seal (Drive Shaft Side) Assembly Note

1. Apply grease to a new dust seal lip, and press fit the seal using the SSTs.

atraaw00002620

Bearing Assembly Note

1. Press fit a new bearing using the SSTs.

atraaw00002621

Dust Seal (Differential Side) Assembly Note

1. Apply grease to a new dust seal lip, and press fit the seal using the SSTs.

atraaw00002622

Joint Shaft Assembly Note

1. Press fit the joint shaft using the SSTs.

atraaw00002623

1	Bolt
2	Joint shaft (See Joint Shaft Disassembly Note.) (See Joint Shaft Assembly Note.)
3	Dust cover
4	Dust seal (differential side) (See Dust Seal (Differential Side) Assembly Note.)
5	Bearing (See Dust Seal (Differential Side), Bearing Disassembly Note.) (See Bearing Assembly Note.)
6	Dust seal (drive shaft side) (See Dust Seal (Drive Shaft Side) Assembly Note.)
7	Bracket
