TRANSFER REMOVAL/INSTALLATION[GF4AX-EL]


id0316a1800600

1.  Disconnect the negative battery cable.

2.  Drain the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT[GF4AX-EL].)

3.  Remove the transverse member.

4.  Remove the catalytic converter. (See EXHAUST SYSTEM REMOVAL/INSTALLATION[L3].)

5.  Remove the exhaust manifold. (See EXHAUST SYSTEM REMOVAL/INSTALLATION[L3].)

6.  Remove the propeller shaft. (See PROPELLER SHAFT REMOVAL/INSTALLATION.)

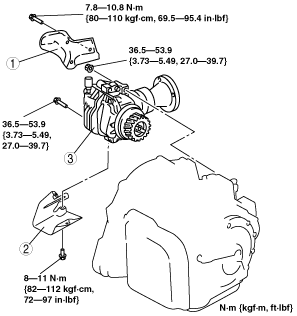

7.  Remove in the order indicated in the table.

atraaw00003285

1
PTO heat shield
2
Air guide plate
3
Transfer

8.  Install in the reverse order of removal

9.  Add ATF to the specified level. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT[GF4AX-EL].)

10.  Connect the negative battery cable.
