PARKING BRAKE LEVER INSPECTION

id041200800900

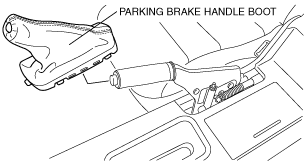

1.  Remove the parking brake handle boot.

atraaw00002485

2.  Turn the adjusting nut so that the parking brake lever stroke is between 3—5 notches when pulled.

atraaw00002486

3.  Verify that the parking brake operates.
