REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION
id041300800500
1. Remove the wheel and tire assembly.
2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.

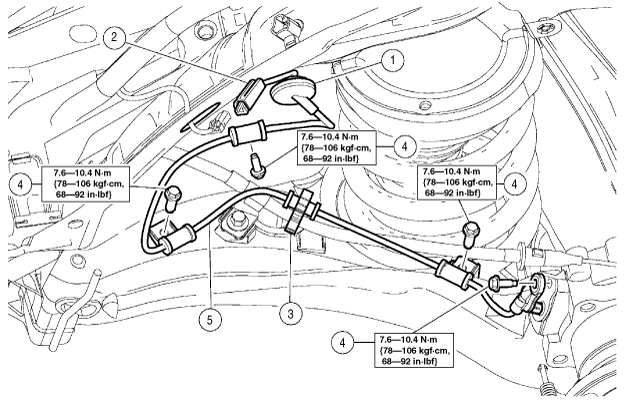

atraaw00002281
|
1
|
Grommet
|
2
|
ABS wheel-speed sensor connector
|
3
|
Clip
|
4
|
Bolt
|
5
|
ABS wheel-speed sensor
|
