FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION

id041300800700

1.  Remove the wheel and tire assembly.

2.  Detach the grommet from the vehicle and pull out the ABS wheel-speed sensor connector.

atraaw00002248

3.  Disconnect the ABS wheel-speed sensor connector.

atraaw00002249

4.  Detach the clip.

atraaw00002250

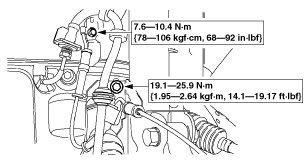

5.  Remove the bolts.

atraaw00002251

6.  Remove the bolt and the ABS wheel-speed sensor.

atraaw00002252

Note

•  Before removal, clean off any dirt that may have collected around the ABS wheel-speed sensor.

7.  Install in the reverse order of removal.

Note

•  Thoroughly clean the mounting surface.
