DTC P1746, P1747, P1760[LA4AX-EL (CD4E)]
id050207807500
DTC P1746 |
Electronic pressure control (EPC) solenoid circuit malfunction (open circuit/short to power supply) |
---|---|
DTC P1747 |
Electronic pressure control (EPC) solenoid circuit malfunction (short to ground) |
DTC P1760 |
Electronic pressure control (EPC) solenoid malfunction |

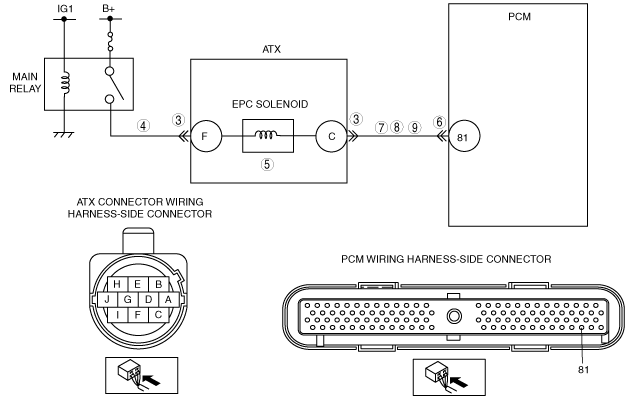

DETECTION CONDITION
|
• Open or short circuit in circuit between electronic pressure solenoid and PCM, or in electronic pressure solenoid internal circuit
|
POSSIBLE CAUSE
|
• EPC solenoid malfunction.
• Main relay and fuse malfunction.
• Short to ground in wiring harness between main relay and ATX connector terminal F (transaxle case side).
• Open circuit in wiring harness between main relay and ATX connector terminal F (transaxle case side).
• Short to ground in wiring harness between ATX connector terminal C (wiring harness-side) and PCM terminal 81 (wiring harness-side).
• Short to power supply in wiring harness between ATX connector terminal C (wiring harness-side) and PCM terminal 81 (wiring harness-side).
• Open circuit in wiring harness between ATX connector terminal C (wiring harness-side) and PCM terminal 81 (wiring harness-side).
• Damaged connector between EPC solenoid and PCM.
• PCM malfunction.
|
![]() |
Diagnostic procedure
STEP |
INSPECTION |
ACTION |
|
---|---|---|---|
1
|
VERIFY FREEZE FRAME DATA HAS BEEN RECORDED
• Has the FREEZE FRAME DATA been recorded?
|
Yes
|
Go to the next step.
|
No
|
Record the FREEZE FRAME DATA on the repair order, then go to the next step.
|
||
2
|
VERIFY RELATED SERVICE INFORMATION AVAILABILITY
• Verify related Service Information availability.
• Is any related Service Information available?
|
Yes
|
Perform repair or diagnosis according to the available Service Information.
• If the vehicle is not repaired, go to the next step.
|
No
|
Go to the next step.
|
||
3
|
INSPECT ATX CONNECTOR FOR POOR CONNECTION
• Turn the ignition switch to the LOCK position.
• Inspect ATX connector connection.
• Disconnect the ATX connector.
• Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
• Is the connection normal?
|
Yes
|
Go to the next step.
|
No
|
Repair or replace the connector and/or terminals, then go to Step 10.
|
||
4
|
INSPECT POWER SUPPLY CIRCUIT
• Turn the ignition switch to the ON position (engine off).
• Inspect voltage at ATX connector terminal F (wiring harness-side).
• Is the voltage approx. 12 V?
|
Yes
|
Go to the next step.
|
No
|
Inspect the fuse, main relay and wiring harness, then go to Step 10.
|
||
5
|
INSPECT RESISTANCE
• Turn the ignition switch to the LOCK position.
• Inspect resistance between ATX terminal C and F (transaxle case side).
• Is resistance within 3.75—5.92 ohms?
|
Yes
|
Go to the next step.
|
No
|
Replace the EPC solenoid, then go to Step 10.
|
||
6
|
INSPECT PCM CONNECTOR FOR POOR CONNECTION
• Disconnect the PCM connector.
• Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
• Is the connection normal?
|
Yes
|
Go to the next step.
|
No
|
Repair or replace connector and/or terminals, then go to Step 10.
|
||
7
|
INSPECT EPC SOLENOID CIRCUIT FOR OPEN CIRCUIT
• Inspect for continuity between PCM terminal 81 (wiring harness-side) and ATX connector terminal C (wiring harness-side).
• Is there continuity between terminals?
|
Yes
|
Go to the next step.
|
No
|
Repair or replace the wiring harness, then go to Step 10.
|
||
8
|
INSPECT EPC SOLENOID CIRCUIT FOR SHORT TO GROUND
• Turn the ignition switch to the LOCK position.
• Inspect continuity between ATX connector terminal C (wiring harness-side) and body ground.
• Is there continuity?
|
Yes
|
Repair or replace the wiring harness, then go to the Step 10.
|
No
|
Go to the next step.
|
||
9
|
INSPECT EPC SOLENOID CIRCUIT FOR SHORT TO POWER SUPPLY
• Turn the ignition switch to the ON position (engine off).
• Inspect voltage at ATX connector terminal C (wiring harness-side).
• Is the voltage 0 V?
|
Yes
|
Go to the next step.
|
No
|
Repair or replace the wiring harness, then go to the next step.
|
||
10
|
VERIFY TROUBLESHOOTING OF DTC P1746, P1747 OR P1760 COMPLETED
• Make sure to reconnect all the disconnected connectors.
• Clear the DTC from memory using the M-MDS.
• Perform the “After Repair Procedure”.
• Are any DTCs present?
|
Yes
|
Replace the PCM, then go to the next step.
|
No
|
Go to the next step.
|
||
11
|
VERIFY DTCS
• Are except DTC P1746, P1747 and P1760 output?
|
Yes
|
Go to the applicable DTC inspection.
(See DTC TABLE[LA4AX-EL (CD4E)].)
|
No
|
DTC troubleshooting completed.
|
