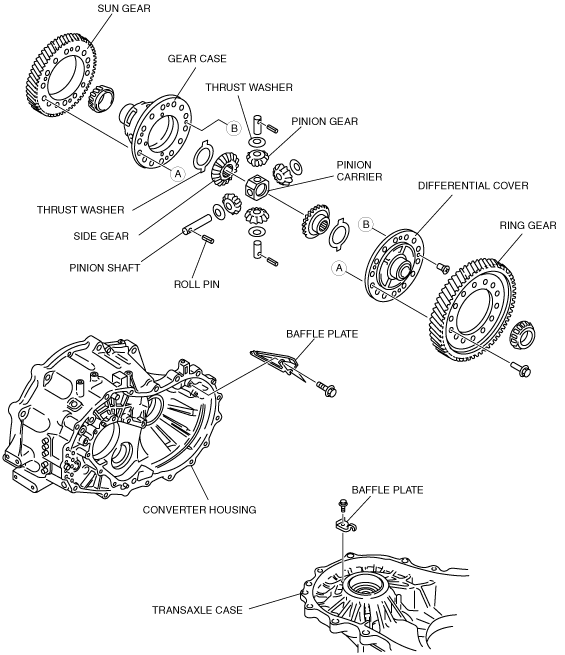

DIFFERENTIAL OUTLINE[GF4AX-EL]


id051703106500

•  The differential pinion gear has been changed from a two-pinion to a four-pinion type to improve reliability.
•  The shape of the ring gear’s teeth surfaces has been optimized to improve reliability.
•  A baffle plate has been added to the converter housing and transaxle case to improve reliability.
