COOLING SYSTEM CONSTRUCTION[LA4AX-EL (CD4E)]


id051708105700

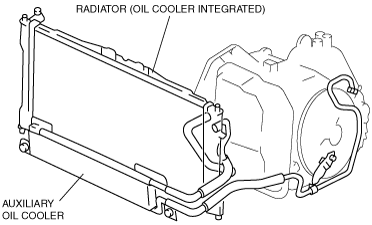

•  All vehicles are equipped with an oil cooler integrated with the radiator which cannot be repaired separately.
•  The integrated oil cooler transfers heat from the ATF to the engine coolant.
•  The auxiliary oil cooler transfers heat from the ATF to the outside air.
atraan00000443
