TRANSAXLE SUPPORT INSULATOR (LH) INSTALLATION[LA4AX-EL (CD4E)]

id051708804900

1.  Assemble the upper transaxle mount plate component using a new mount.

atraaw00002660

(1)  Install the top and bottom mount cups.

2.  Install the bottom mount plate, bolt and nut.

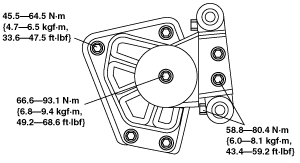

atraaw00002688

3.  Install the upper transaxle mount plate component.

4.  Install the spacer.

atraaw00002636

5.  Install the wiring harness bracket and nut.

atraaw00002837

6.  Remove the SSTs.

atraaw00000063

atraaw00000062

atraaw00000059

7.  Connect the connectors to the valve cover.

atraaw00002581

8.  Install the power steering pressure hose bracket.

9.  Install the air cleaner component.

atraaw00002570

10.  Install the air hose and air cleaner cover.

atraaw00002383

11.  Connect the crankcase vent hose and MAF sensor connector.

atraaw00002382

12.  Verify that there is no blockage or kinks, and the vent hose routing is correct.

13.  Install the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION[AJ (3.0L Duratec)].)

14.  Connect the negative battery cable.

Note

•  If the battery has been disconnected then reconnected, the vehicle may need to be driven 160 km {100 miles} or more for the PCM to relearn the control strategy.
