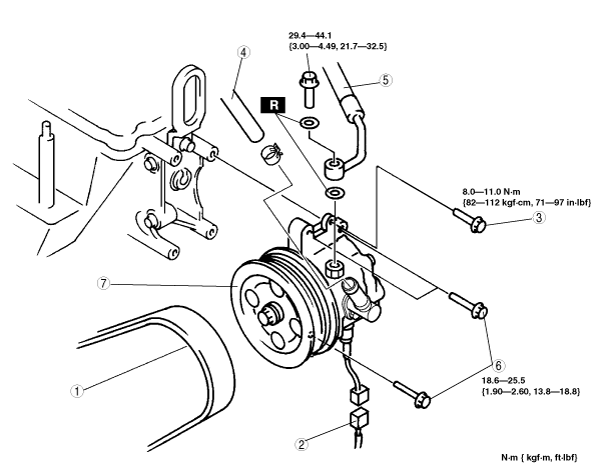

POWER STEERING OIL PUMP REMOVAL/INSTALLATION[L3]
id0614008007a3
1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
atraaw00001903
|
|
1
|
Drive belt
|
|
2
|
Pressure switch connector
|
|
3
|
Bolt
|
|
4
|
Suction hose
|
|
5
|
Pressure pipe
|
|
6
|
Bolts
|
|
7
|
Power steering oil pump
|
