REFRIGERANT SYSTEM TESTS

id071000800900

Refrigerant Pressure Check

1.  Connect the manifold gauge. (See MANIFOLD GAUGE SET CONNECTION.)

2.  Start the engine and after it is warmed up, run it at a constant 1,500 rpm.

3.  Set the fan speed MAX HI.

4.  Turn the A/C switch on.

5.  Set to RECIRCULATE mode.

6.  Set the temperature control to MAX COLD.

7.  Set to VENT mode.

8.  Close all the doors and all the windows.

9.  Measure the ambient temperature and high- and low- pressure side reading of the manifold gauge.

10.  Verify that the intersection of the pressure reading of the manifold gauge and ambient temperature is in the shaded zone.

•  If there is any malfunction, inspect the refrigerant system according to the troubleshooting chart.

aesffw00000302

Refrigerant System Performance Test

1.  Inspect the refrigerant pressure.

2.  Place a dry-bulb thermometer in the driver-side center ventilator outlet.

3.  Start the engine and after it is warmed up, run it at a constant 1,500 rpm.

4.  Set the fan speed to MAX HI.

5.  Turn the A/C switch on.

6.  Set to RECIRCULATE mode.

7.  Set the temperature control to MAX COLD.

8.  Set to VENT mode.

9.  Close all the doors and windows.

10.  Wait until the air conditioner output temperature stabilizes.

Stabilized condition

•  The A/C compressor repeatedly turns on and off at regular intervals.

11.  After the blower air is stabilized, read the dry-bulb thermometer.

12.  Verify the ambient temperature.

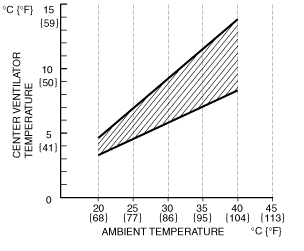

13.  Verify that the temperature reading is in the shaded zone.

•  If the there is any malfunction, inspect the refrigerant system according to the troubleshooting chart.

aesffw00000303
