RECEIVER/DRIER REMOVAL/INSTALLATION


id071100801400

1.  Discharge the refrigerant from the system. (See DISCHARGING AND RECOVERY.)

2.  Disconnect the refrigerant line from the receiver/drier.

atraaw00003081

Caution
•  Plug all ports to prevent contamination from dirt or moisture.

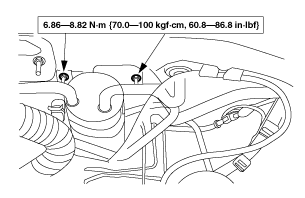

3.  Remove the two receiver/drier mounting bracket nuts.

atraaw00003082

4.  Remove the receiver/drier.

5.  Install in the reverse order of removal.
