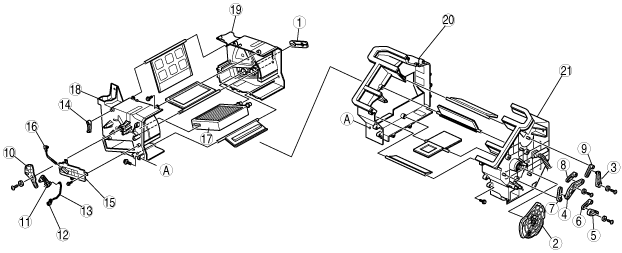

HEATER UNIT DISASSEMBLY/ASSEMBLY
id071100805200
1. Remove the following parts:
2. Disassemble in the order indicated in the table.
aesffw00000308
|
|
1
|
Protector
|
|
2
|
Airflow mode main link
|
|
3
|
Airflow mode sub link (1)
|
|
4
|
Airflow mode sub link (2)
|
|
5
|
Airflow mode sub link (3)
|
|
6
|
Airflow mode crank (1)
|
|
7
|
Airflow mode crank (2)
|
|
8
|
Airflow mode crank (3)
|
|
9
|
Airflow mode crank (4)
|
|
10
|
Air mix main link
|
|
11
|
Air mix crank (1)
|
|
12
|
Air mix crank (2)
|
|
13
|
Air mix rod
|
|
14
|
Air mix crank (3)
|
|
15
|
Heater case (1)
|
|
16
|
Water temperature sensor
|
|
17
|
Heater core
|
|
18
|
Heater case (2)
|
|
19
|
Heater case (3)
|
|
20
|
Heater case (4)
|
|
21
|
Heater case (5)
|
3. Assemble in the reverse order of disassembly.
