COOLING UNIT DISASSEMBLY/ASSEMBLY

id071100805300

1.  Disassemble in the order indicated in the table.

atraaw00003026

1
Hose
2
Blower motor
3
Power MOS FET
4
Protector (1)
5
Expansion valve
6
Cooling case (1)
7
Air intake actuator
8
Cooling case (2)
9
Evaporator temperature sensor
(See Sensor Clamp Assembly Note.)
(See Evaporator Temperature Sensor Assembly Note.)
10
Evaporator
(See Evaporator Assembly Note.)
11
Protector (2)
12
Cooling case (3)

2.  Assemble in the reverse order of disassembly.


Sensor Clamp Assembly Note

1.  Attach the sensor clamp as shown in the figure.

atraaw00003318


Evaporator Temperature Sensor Assembly Note

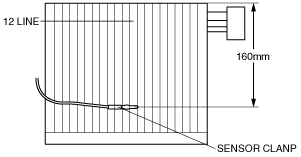

1.  Assemble the evaporator temperature sensor as shown in the figure.

atraaw00003319


Evaporator Assembly Note

•  Installation of a new receiver/drier is not necessary when repairing the air conditioning system except when there is physical evidence of system contamination from a failed A/C component or damage to the receiver/drier.
•  If an evaporator leak is suspected, the evaporator must be leak tested before it is removed from the vehicle. (See EVAPORATOR/CONDENSER INSPECTION.)
•  If the foam seal is damaged during removal install a new seal.
