HEATER HOSE REMOVAL/INSTALLATION [L3]

id071100805800

1.  Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT[L3].)

2.  Disconnect the heater hoses from the heater core.

atraaw00003085

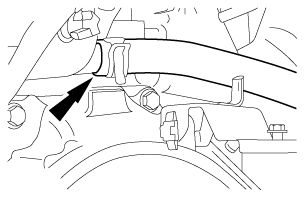

3.  Disconnect the heater outlet hose from the hose connection.

aesffw00000124

4.  Remove the RH front tire.

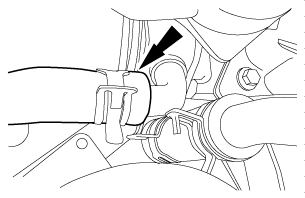

5.  Disconnect the heater hose from the connection.

aesffw00000125

6.  Install in the reverse order of removal.
