MAGNETIC CLUTCH ADJUSTMENT

id074000800500

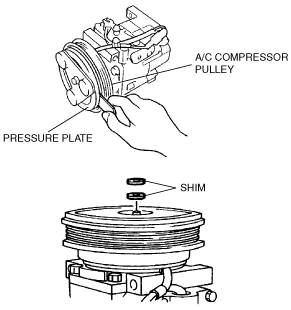

1. Measure the clearance around the entire circumference between the pressure plate and A/C compressor pulley using a feeler gauge.

2. Verify that the clearance.

aesffw00000190

• If not within the specification, remove the pressure plate and adjust the clearance by changing the number of shims.

Clearance

• 0.35—0.75 mm {0.014—0.029 in}
