REFRIGERANT PRESSURE SWITCH INSPECTION

id074000802700

1.  Install the manifold gauge.

2.  Disconnect the refrigerant pressure switch connector.

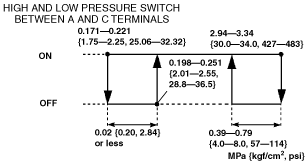

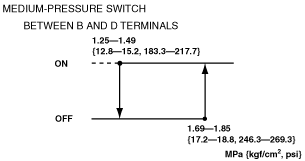

3.  Verify the high‐pressure side reading of the manifold gauge and continuity between the terminals of the refrigerant pressure switch.

•  If the continuity is not normal, replace the refrigerant pressure switch.

aesffw00000321

aesffw00000322

aesffw00000323
