SOLAR RADIATION SENSOR REMOVAL/INSTALLATION

id074000802800

1.  Disconnect the negative battery cable.

2.  Pry the solar sensor from the dashboard using a flathead screwdriver wrapped with protective tape.

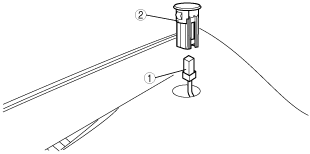

3.  Remove in the order indicated in the table.

aesffw00000179

1	Solar radiation sensor connector
2	Solar radiation sensor

4.  Install in the reverse order of removal.
